Conversion Process - Mechanical - Motor/Gearbox Adaptor Plate - Page 2

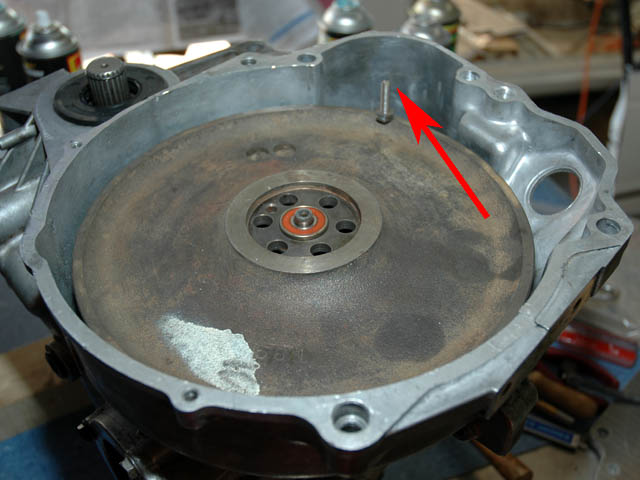

Hole tapped in old flywheel and an adjustable point scriber made-up to mark new adaptor plate

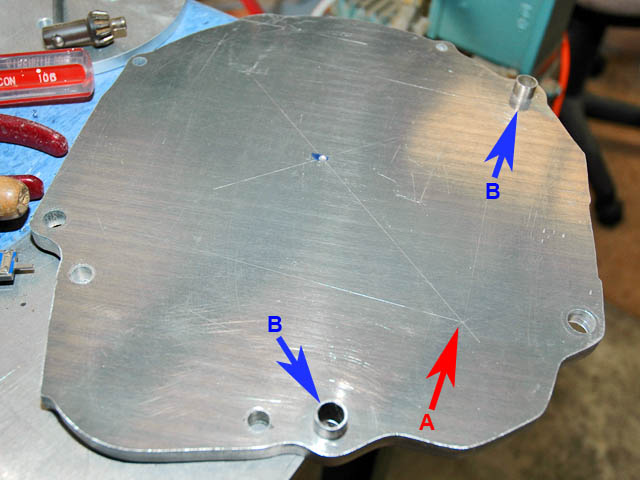

Accurate locating dowels shown as "B"

and "A" shows the scribed mark made from the above flywheel scriber....

The centre of the circle is then precisely found and centre drilled

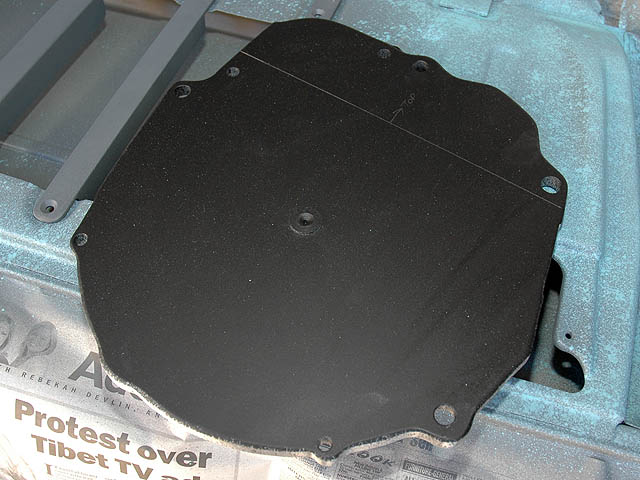

Centre was then double checked against the gearbox - plate now ready for motor locating holes to be milled....
