Conversion Process - Mechanical - Finishing the front engine mount.....

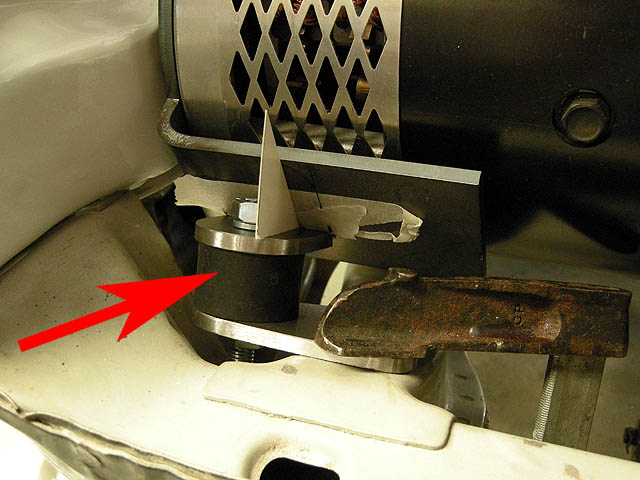

Two 25mm high x 40mm diameter vibration mounts (with 10mm mounting bolts) used for the job

Suitable 6mm mild steel "Ears" were then cut to suit and mig welded to the main front plate

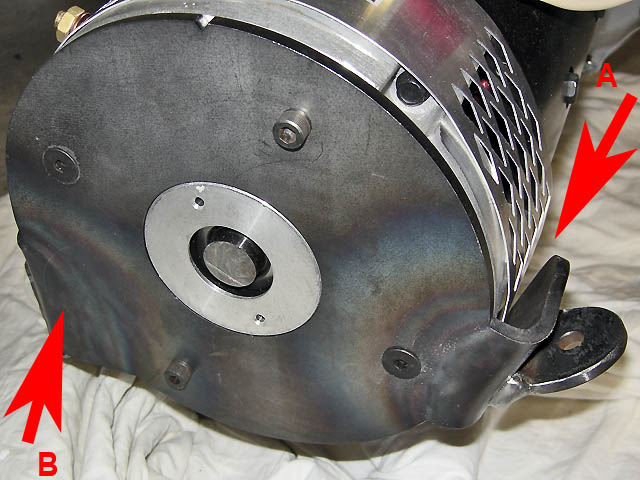

A - shows the completed front mount

B - the second mount is behind the plate and can be seen better in the next photograph

Another view after welding and final test fit.....

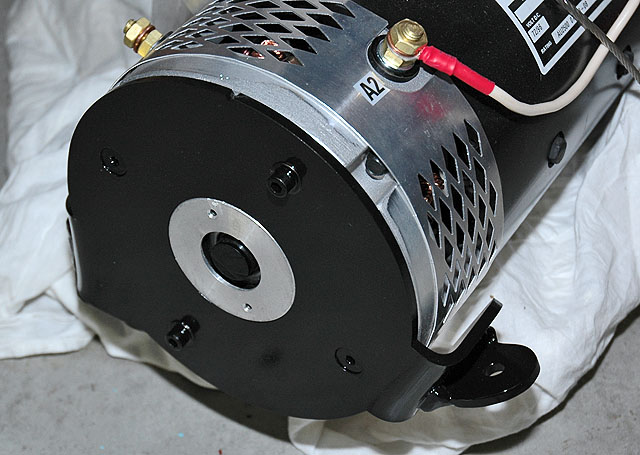

Front motor mount complete and fitted....

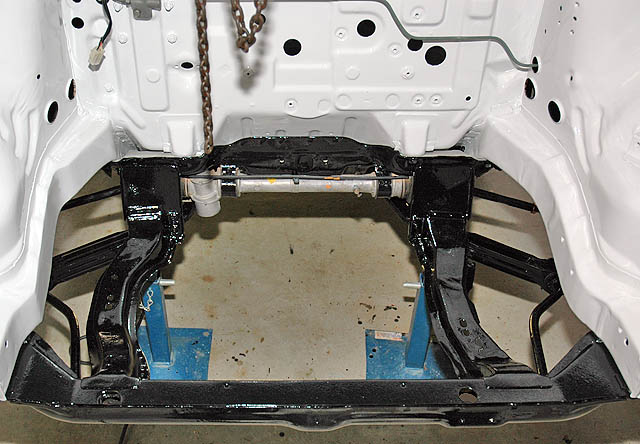

Motor bay rails and all front suspension components cleaned and painted

Ready for final motor mounting......
