Conversion Process - Mechanical - Machining Adaptor Plate

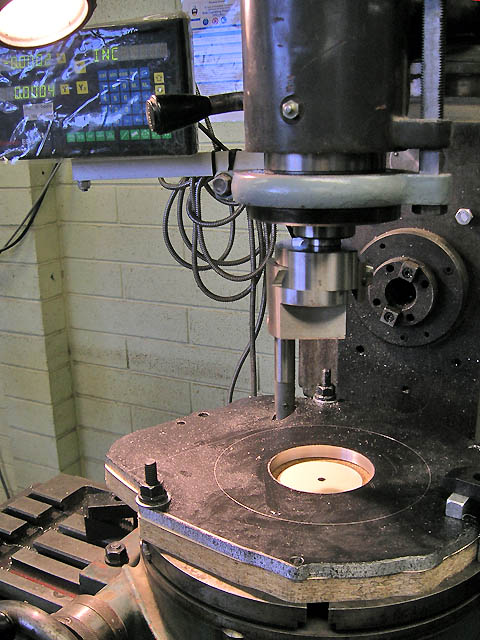

Dick setting up the boring head....

Centre mounting hole - accurate to within .001"

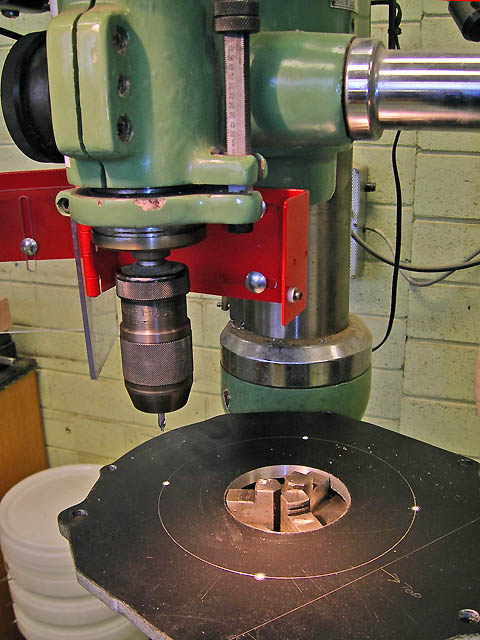

Dividing head used to accurately locate the holes required for securing the motor to the gearbox plate

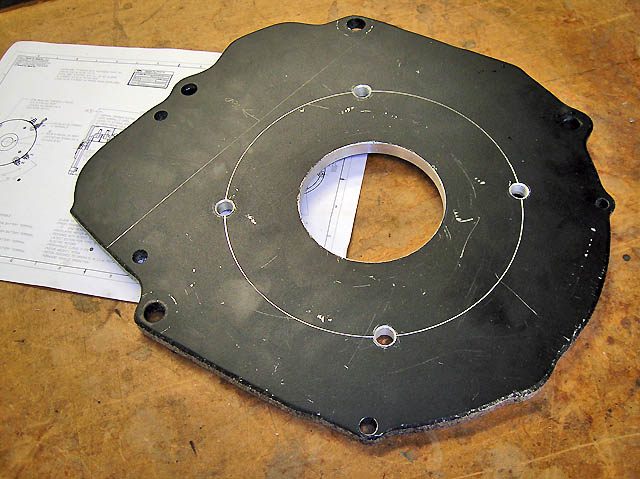

Motor side of the finished plate (ready for a cleanup and polish)

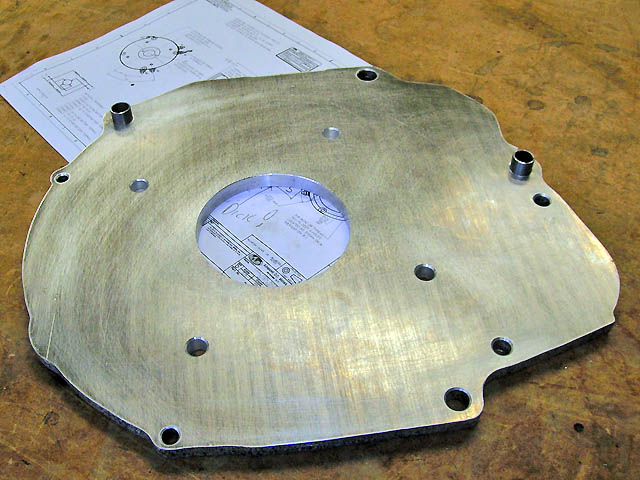

Gearbox side of the finished plate - note the two locating dowels....
