Conversion Process - Mechanical - Test Motor/Gearbox fit and final Battery Box fitting

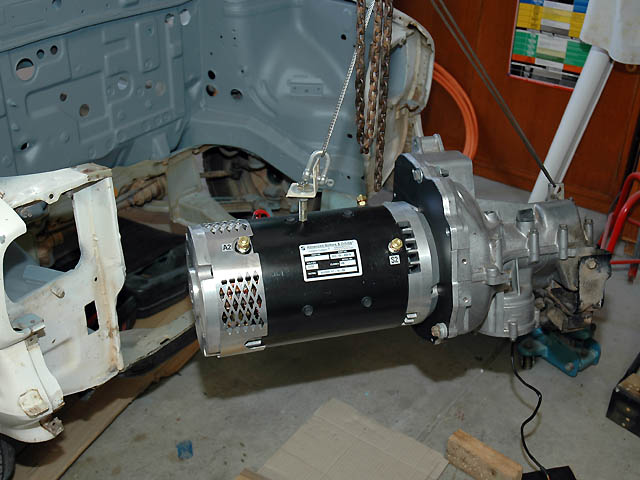

First test fit of motor to gearbox

The exterior of the gearbox will be cleaned up and polished to match the clean looking motor.....

New front motor mount needs fabricating plus sourcing some suitable HT bolts for the job

Getting ready for a test fit in the motor bay

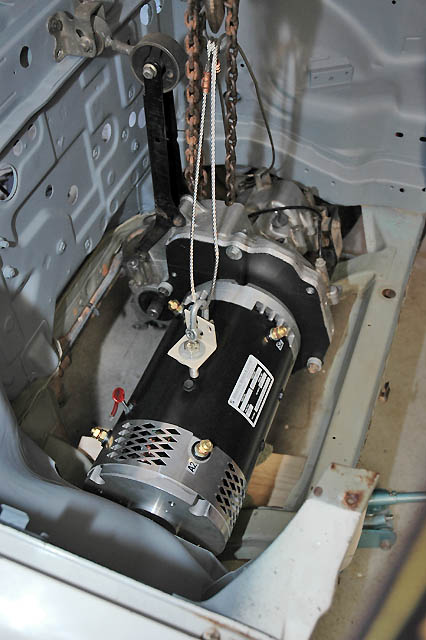

Lowering into position

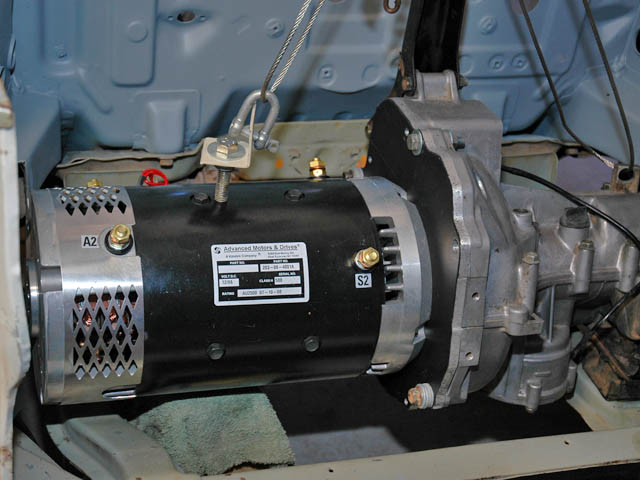

Nice fit! Now to make up the new front motor mount.....

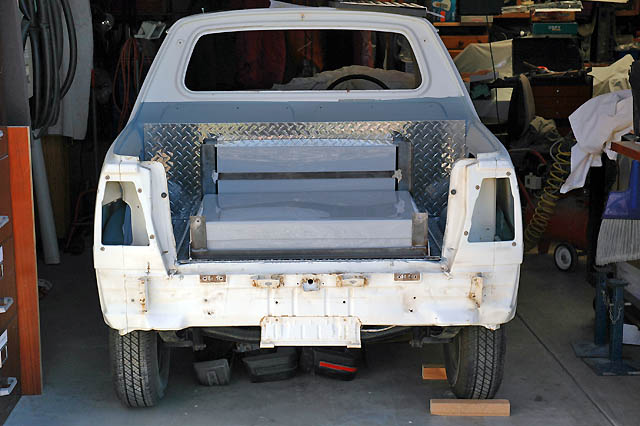

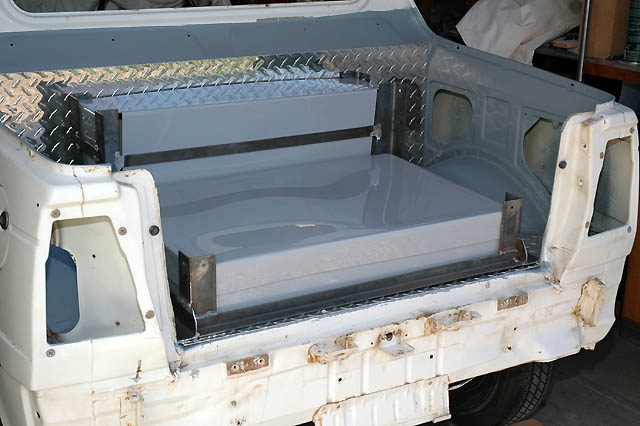

Final test fit of the battery box

(Designed for 10.8 Kw - 120 volts @ 120 kg weight)

But in Version 1.0 will use 6,5 Kw @ 72 kg weight

A lockable propeller plate cover will be fabricated to suit the assembly

<- Previous Page | Next Page ->

Back to "Conversion Process - Mechanical" Index Page
