Using MightyBoyEV - Battery Upgrade October/November 2010 - Page 3


Terminal Preparation

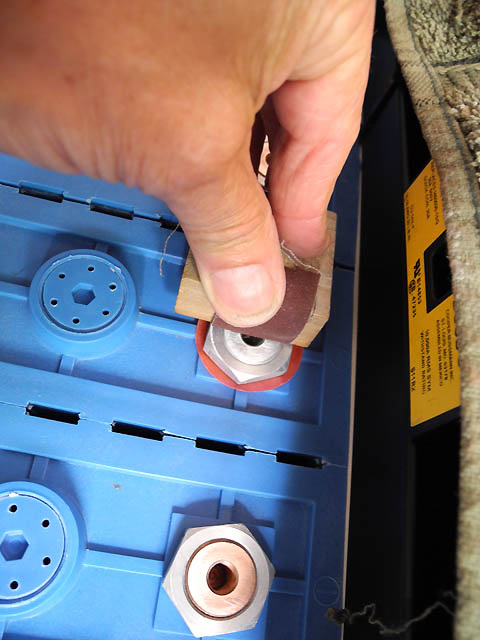

Remove any oxidization from the terminal faces being carful in keeping the terminal surface flat

(In this case I am using some fine emery paper and a small block)

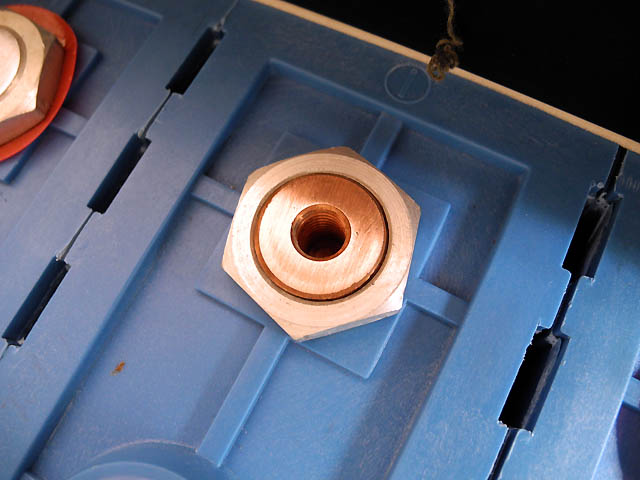

Should look like this......



Next remove any oxidization from the copper interconnection straps

(I used a block of wood with some fine find paper as shown)

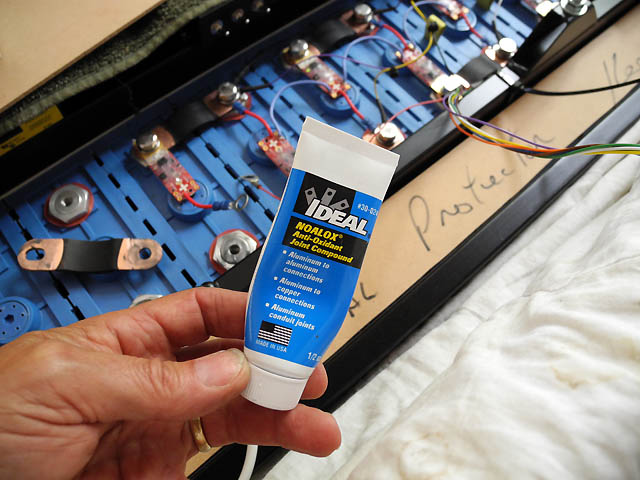

Rod suggests using NOALOX anti-oxidant jointing compound on the contact surfaces - a good idea......

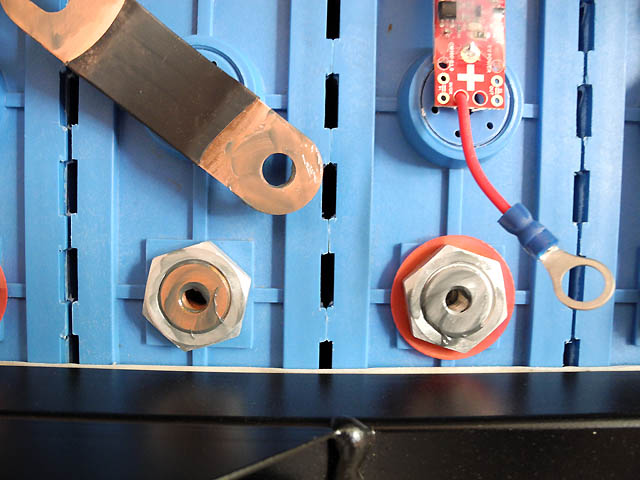

Compound applied on the freshly polished terminals and straps as shown above......

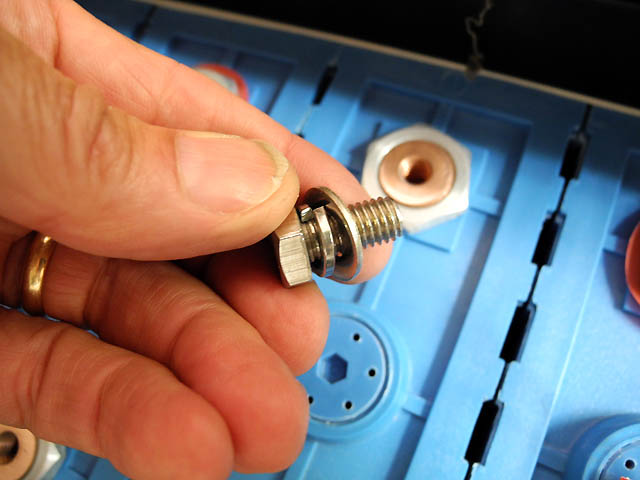

Use spring washers and flat washers like this.....

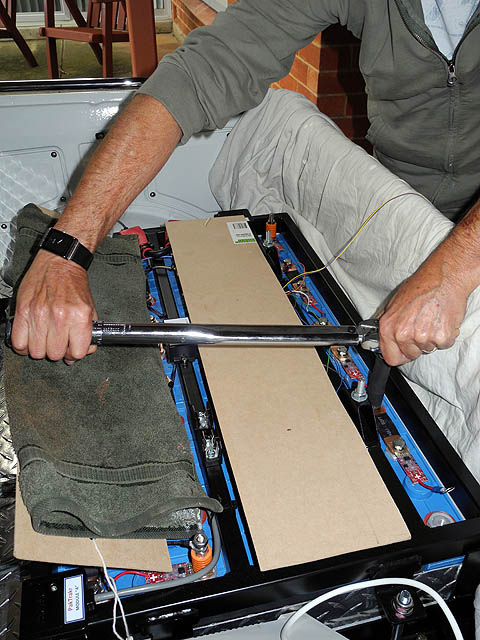

All terminal bolts and nuts tightened to 6 foot pounds (or 8 newton metres) using a torque wrench as shown......
